How to Set Up a Video Wall
An video wall transforms multiple displays into a single, large-format visual canvas. Whether you're creating an impressive lobby display, a control room monitoring station, or an immersive retail experience, proper setup is crucial for seamless results. This guide walks you through the complete process from planning to playback.
Before You Start
- Multiple commercial-grade displays (2x2 or larger configuration)
- Video wall mount or mounting system
- Media player(s) or environment controller
- Network connectivity (wired recommended)
- Content management software (SPARC)
- Power outlets for all displays
- Video cables (HDMI, DisplayPort, or SDI)
Plan Your Layout
Before purchasing equipment, define your video wall configuration. Measure the installation space and determine the display arrangement (2x2, 3x3, etc.). Calculate total resolution by multiplying individual display resolution by the number of displays in each direction. For example, a 2x2 wall of 1080p displays provides 3840x2160 total resolution. Consider viewing distance—closer viewing benefits from smaller bezels or LED technology.
- — Account for bezel width when calculating content dimensions
- — Ensure wall can support total display weight
- — Plan cable routing before installation begins
Install the Mounting System
Attach the video wall mounting system to the wall. Video wall mounts allow micro-adjustments for perfect alignment. Start by locating wall studs or using appropriate wall anchors for the total weight. Install the mounting rails level using a laser level for precision. Most professional video wall mounts use a pop-out or push-in mechanism for easy display access during maintenance.
- — Use a laser level for precise horizontal alignment
- — Double-check weight capacity of wall and mounts
- — Leave access space behind displays for cable management
Mount the Displays

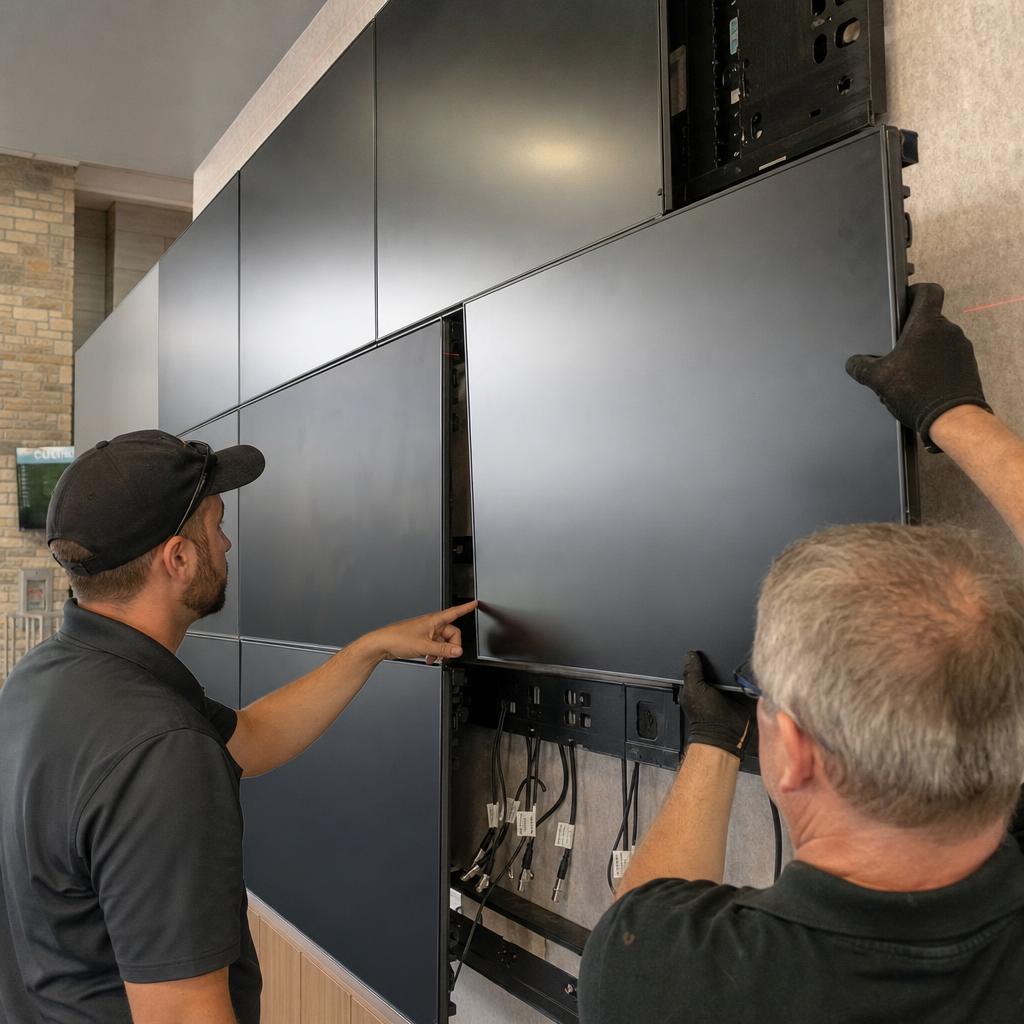

Carefully attach each display to the mounting system. Start with the bottom-left display and work across, then up. Use the mount's micro-adjustment features to minimize visible gaps between screens. Ensure all displays are level and uniformly aligned. The goal is consistent spacing between all panels—even 1mm variance is noticeable.
- — Have two people lift and position each display
- — Keep protective covering on displays until final calibration
- — Take photos during installation for documentation
Connect Video and Power
Run video cables from your media player(s) or environment controller to each display. Use quality cables rated for your resolution (HDMI 2.0 for 4K 60Hz, DisplayPort 1.4 for higher). Connect power cables and use a UPS or power conditioner for protection. Label all cables clearly for future maintenance. If using daisy-chain capable displays, you may reduce cable runs.
- — Use cable management systems to organize cables
- — Test each connection before final cable routing
- — Consider in-wall cable conduit for clean appearance
Configure Display Settings
Access each display's on-screen menu and configure settings. Disable image enhancement features that could cause mismatched processing between displays. Set all displays to the same color temperature (usually 6500K). Enable video wall mode if available, which optimizes the display for video wall use. Configure bezel compensation settings if built into the displays.
- — Use the same settings profile on all displays
- — Disable power saving/sleep modes for continuous operation
- — Set input to auto-detect or your specific source type
Set Up Media Players
Install and configure media players for each display (one per environment for distributed approach) or connect all displays to a single environment controller. For distributed playback, install SPARC player software on each device and connect them to the same network. Register players with your SPARC account and assign them to a display group representing the video wall.
- — Use wired Ethernet for reliability and synchronisation
- — Ensure all players have identical hardware for consistent decoding
- — Configure automatic startup after power loss
Configure Video Wall Layout in Software

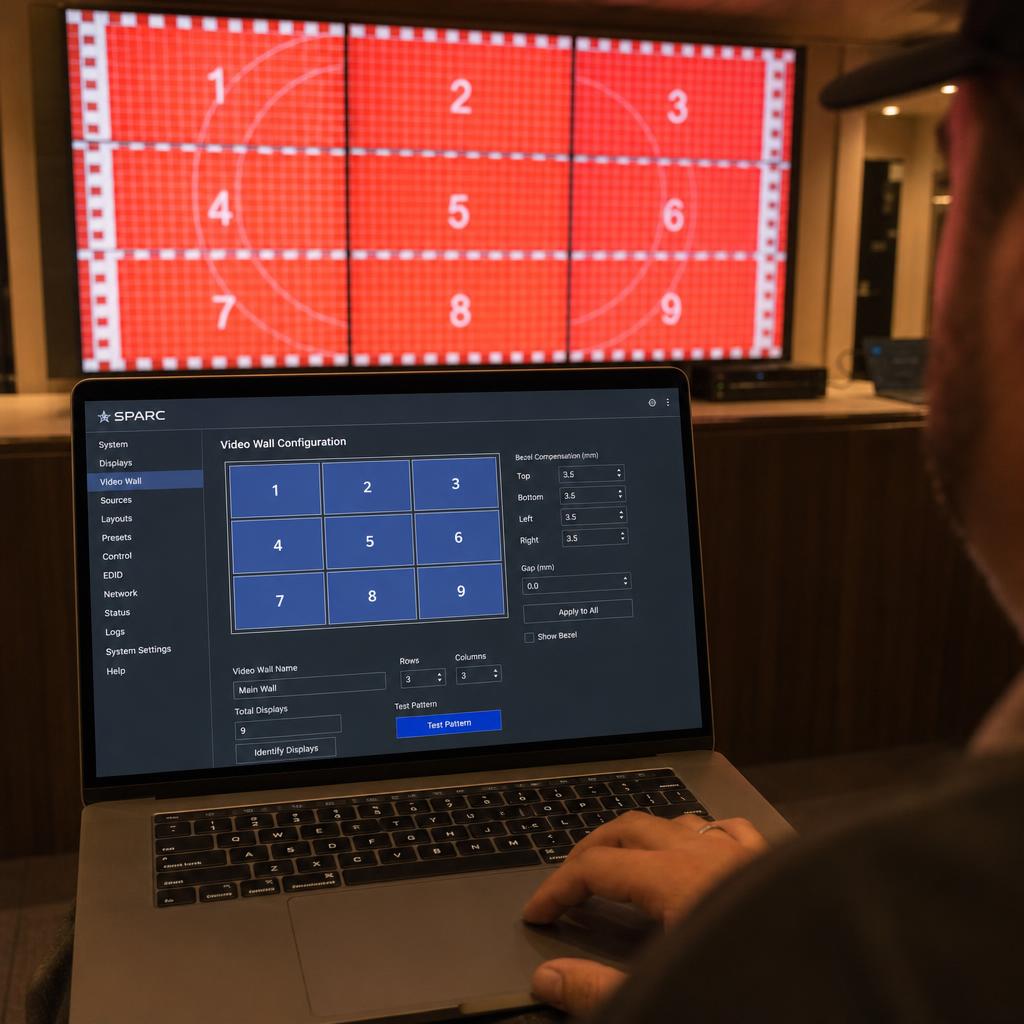

In your CMS (SPARC), create a video wall configuration matching your physical layout. Define the number of rows and columns, assign each player to its position in the grid, and enter bezel dimensions for compensation. SPARC will calculate the total canvas size and handle content distribution automatically. Test the configuration with a grid pattern to verify alignment.
- — Use the test pattern to fine-tune bezel compensation
- — Save the configuration for quick restoration if needed
- — Document the player-to-position mapping
Calibrate Color and Brightness
Adjust each display so colors and brightness match across the entire wall. Start by setting all displays to factory defaults, then use a colorimeter if available for precise calibration. Match white balance across all panels, then adjust brightness uniformity. Professional calibration equipment ensures perfect matching; visual calibration can achieve acceptable results with patience.
- — Calibrate in the lighting conditions the wall will operate in
- — Let displays warm up for 30 minutes before calibration
- — Save calibration settings to display memory
Test Synchronisation
Play video content that spans the entire wall to verify synchronisation. Watch for tearing at display boundaries, which indicates timing issues. SPARC's synchronisation engine should eliminate visible sync problems. If issues persist, verify all players are connected to the same NTP time server and network latency is consistent. Test with different content types to ensure reliability.
- — Use content with horizontal motion to spot sync issues
- — Check sync at different times of day for consistency
- — Monitor player logs for synchronisation warnings
Deploy Content and Schedule
Upload your video wall content to SPARC, ensuring it matches the total wall resolution. Create playlists and schedules for your content. Enable proof of play logging for verification. Set up monitoring alerts to notify you of any player issues. Your video wall is now ready for operation.
- — Create content at exact wall resolution for best quality
- — Schedule content changes during low-traffic hours
- — Test emergency override functionality
Your video wall is now fully operational. Regular maintenance includes cleaning displays, checking cable connections, and recalibrating color periodically. SPARC's remote monitoring will alert you to any issues requiring attention. For the best long-term results, schedule quarterly inspections and keep detailed maintenance logs.
Troubleshooting
Content appears stretched or misaligned at bezels
Verify bezel compensation settings match actual bezel widths. Remeasure bezels and update configuration.
Visible tearing when content crosses screen boundaries
Check network connectivity and NTP synchronisation. All players should show synchronised time within 10ms.
Color doesn't match between displays
Recalibrate all displays with a colorimeter. Ensure all displays use identical settings profiles.
One display shows different content than others
Verify player is assigned to correct position in video wall configuration. Check network connectivity to that player.
