How to Calibrate LED Wall Colors
LED wall color calibration ensures uniform appearance across all modules and accurate color reproduction. Proper calibration is essential for professional installations where color accuracy matters—retail environments, broadcast studios, and corporate presentations. This guide covers both initial calibration and ongoing maintenance.
Before You Start
- LED wall fully installed and powered
- LED processor with calibration support
- Manufacturer's calibration software
- Colorimeter or spectrophotometer (recommended)
- Laptop with calibration software installed
- Dark room or controlled lighting conditions
- Reference images and test patterns
Prepare the Environment
LED calibration requires controlled conditions. Dim or eliminate ambient lighting that could affect measurements. If the LED wall is in a space with variable lighting (lobby, retail), calibrate for the primary viewing conditions. Allow the LED wall to warm up for at least 30 minutes at operating brightness before calibration begins.
- — Close blinds and turn off unnecessary lights
- — Calibrate at the brightness level used in normal operation
- — Note ambient conditions for future reference
Run Initial Diagnostics
Before color calibration, verify all modules and receiving cards are functioning. Display a white pattern and visually inspect for dead pixels, failed modules, or obvious color variations. Use the LED processor's diagnostics to check module status. Replace or repair any failed components before proceeding with calibration.
- — Take photos of any issues for warranty claims
- — Check module temperatures aren't exceeding specifications
- — Verify firmware versions are consistent across all receiving cards
Set Base Brightness Level
Determine the operating brightness for your installation. LED walls can be driven at various brightness levels—higher brightness reduces lifespan. For indoor viewing, 800-1500 nits is typical. Set all modules to this target brightness using the processor's global brightness control. This becomes your baseline for calibration.
- — Use the lowest brightness that meets visibility requirements
- — Consider different brightness presets for day/night operation
- — Document the chosen brightness level
Measure White Point

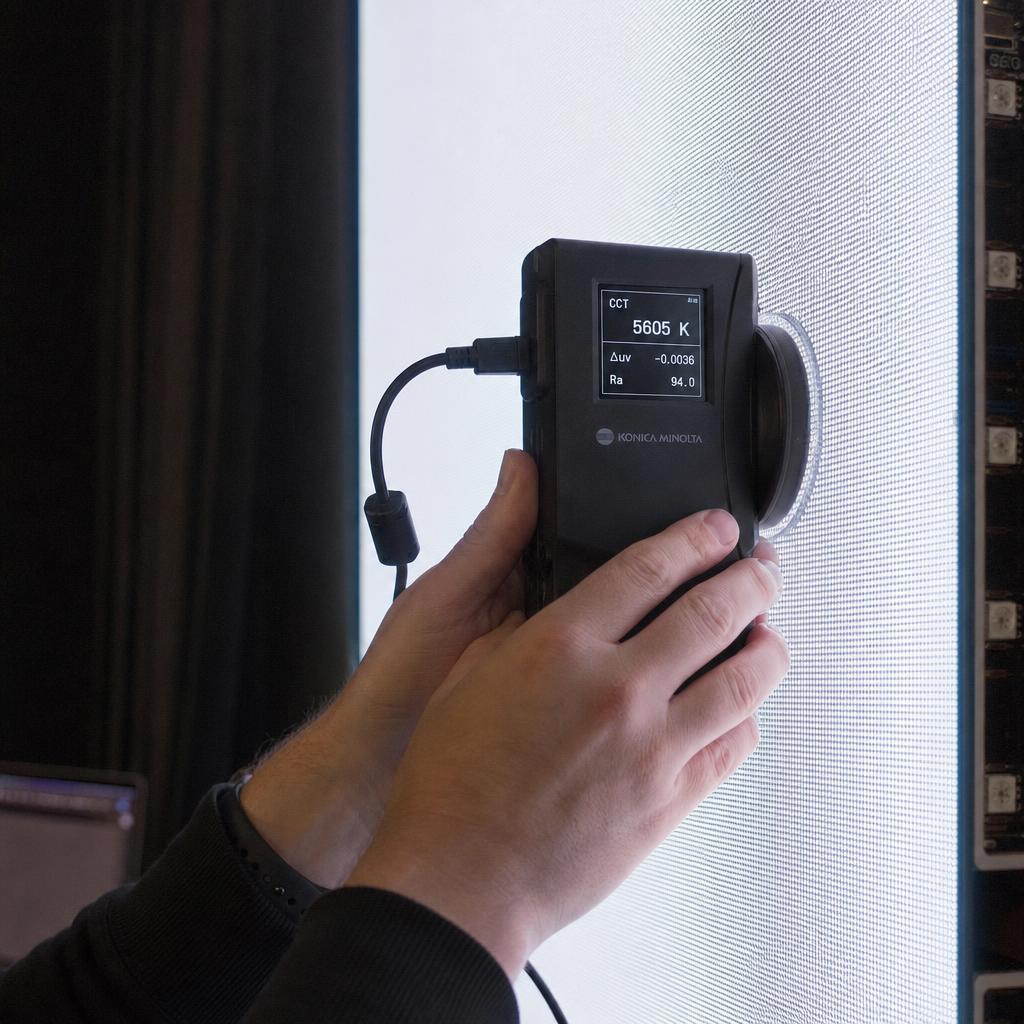

Display full white (255,255,255) on the LED wall. Using a colorimeter, measure the white point at the center of the wall. Standard targets are D65 (6500K) for broadcast or D50 (5000K) for print-accurate work. Record the measured color temperature and compare to your target. This measurement guides the color adjustments.
- — Position colorimeter perpendicular to the display surface
- — Take multiple measurements across the wall for consistency check
- — Record measurements in a calibration log
Adjust RGB Gains
Using the LED processor's color controls, adjust the red, green, and blue gains to achieve your target white point. Reduce the channel that's too strong rather than boosting weaker channels. After adjustment, remeasure to verify the white point matches your target. Small adjustments can make significant color differences.
- — Make incremental adjustments (1-2% at a time)
- — Allow the display to stabilize between adjustments
- — Aim for target within delta E of 2 or less
Calibrate Module-Level Uniformity

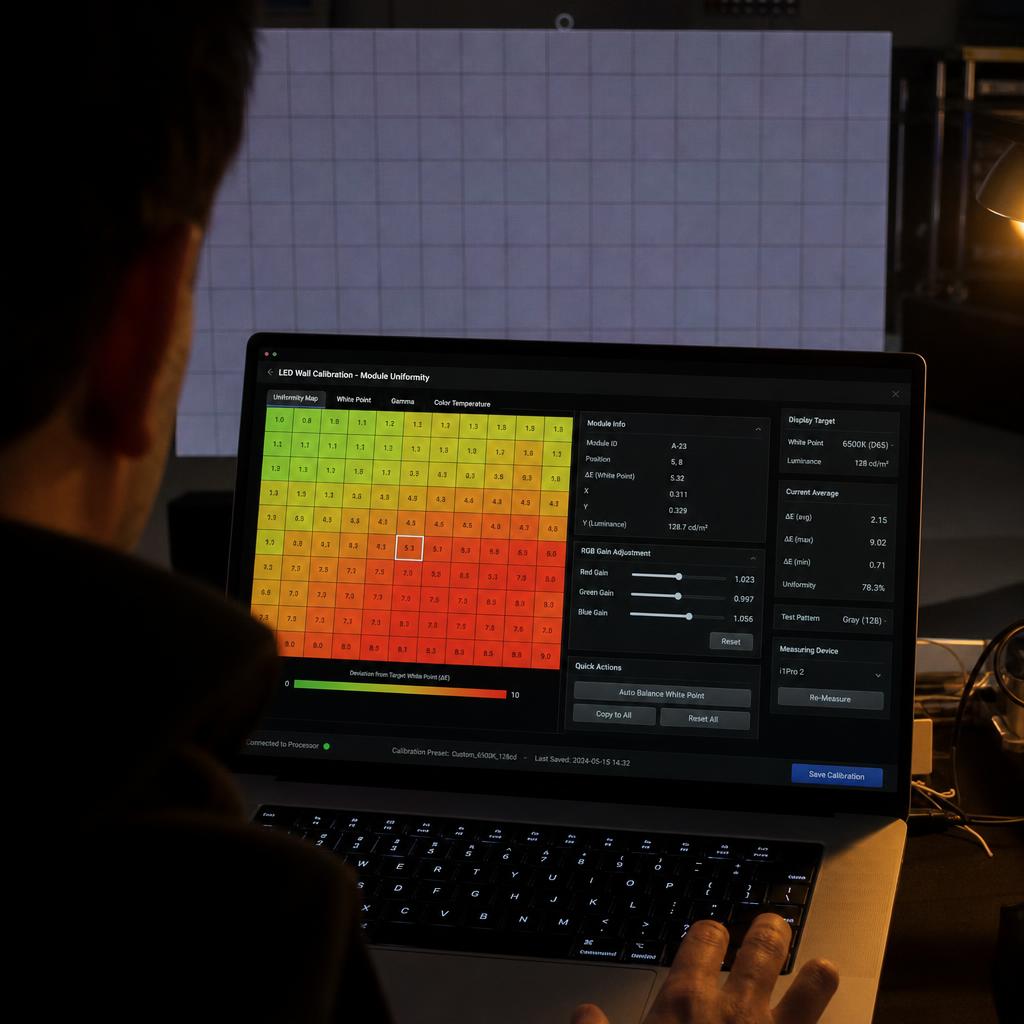

Even with global adjustments, individual modules may vary. Use the processor's per-module calibration to measure and correct each module. Display a gray pattern (128,128,128) and measure each module with the colorimeter. The calibration software adjusts individual module outputs to match the target, creating uniform appearance across the wall.
- — Follow a systematic pattern (left to right, top to bottom)
- — Mark modules that need replacement if too far from target
- — Save calibration data to the processor
Verify Grayscale Tracking
Check that neutrals remain neutral from black to white. Display grayscale patterns at 25%, 50%, 75%, and 100% brightness. Measure each level—they should all match your target white point. If colors shift at different brightness levels, adjust gamma curves in the processor. Good grayscale tracking is essential for natural-looking content.
- — Color shifts at low brightness are common—adjust carefully
- — Use test patterns with gradients to spot banding
- — Check grayscale tracking in the final operating environment
Test with Real Content
Display reference images you're familiar with—skin tones, product photos, branded content. Evaluate whether colors look accurate and natural. Make final adjustments based on subjective evaluation of real-world content. Technical measurements matter, but the final result must look right to viewers.
- — Use content similar to what will actually display
- — View from typical audience positions
- — Get feedback from stakeholders before finalizing
Save and Document Calibration
Save the calibration profile to the LED processor's memory. Export a backup of calibration data to external storage. Document all settings, measurements, and adjustments made. This documentation enables quick restoration if settings are accidentally changed and provides a baseline for future maintenance calibrations.
- — Store backup calibration files securely
- — Include date and conditions in documentation
- — Create a maintenance schedule for recalibration
Schedule Maintenance Calibration
LED characteristics drift over time as diodes age. Schedule calibration checks every 6-12 months for most installations, more frequently for critical applications. Keep the calibration documentation and colorimeter available for maintenance. Regular calibration ensures consistent appearance throughout the LED wall's lifetime.
- — Set calendar reminders for calibration maintenance
- — Track measurements over time to predict drift
- — Plan for LED module replacement as they age unevenly
Your LED wall is now calibrated for uniform, accurate color reproduction. Maintain this quality through regular calibration checks and by operating at appropriate brightness levels. Contact SPARC support if you need assistance integrating calibration workflows with your content management strategy.
Troubleshooting
Modules show visible color differences despite calibration
Some modules may be from different manufacturing batches. Consider module rotation or replacement of extreme outliers.
Colors drift after calibration
Allow 30+ minutes warm-up before calibrating. Check for thermal issues affecting module performance.
Grayscale shows color tint at certain brightness levels
Adjust gamma curves for affected brightness range. This is common in LED walls and requires careful curve adjustments.
Calibration doesn't save or apply correctly
Verify processor firmware is current. Check that calibration data is being saved to the correct profile slot.
